Description

Technical Parameters

Open type diesel generator provides efficient industrial power output for factories, construction projects, mining operations, equipment rooms, and applications where ventilation accessibility and maintenance convenience are prioritized over enclosure noise reduction.

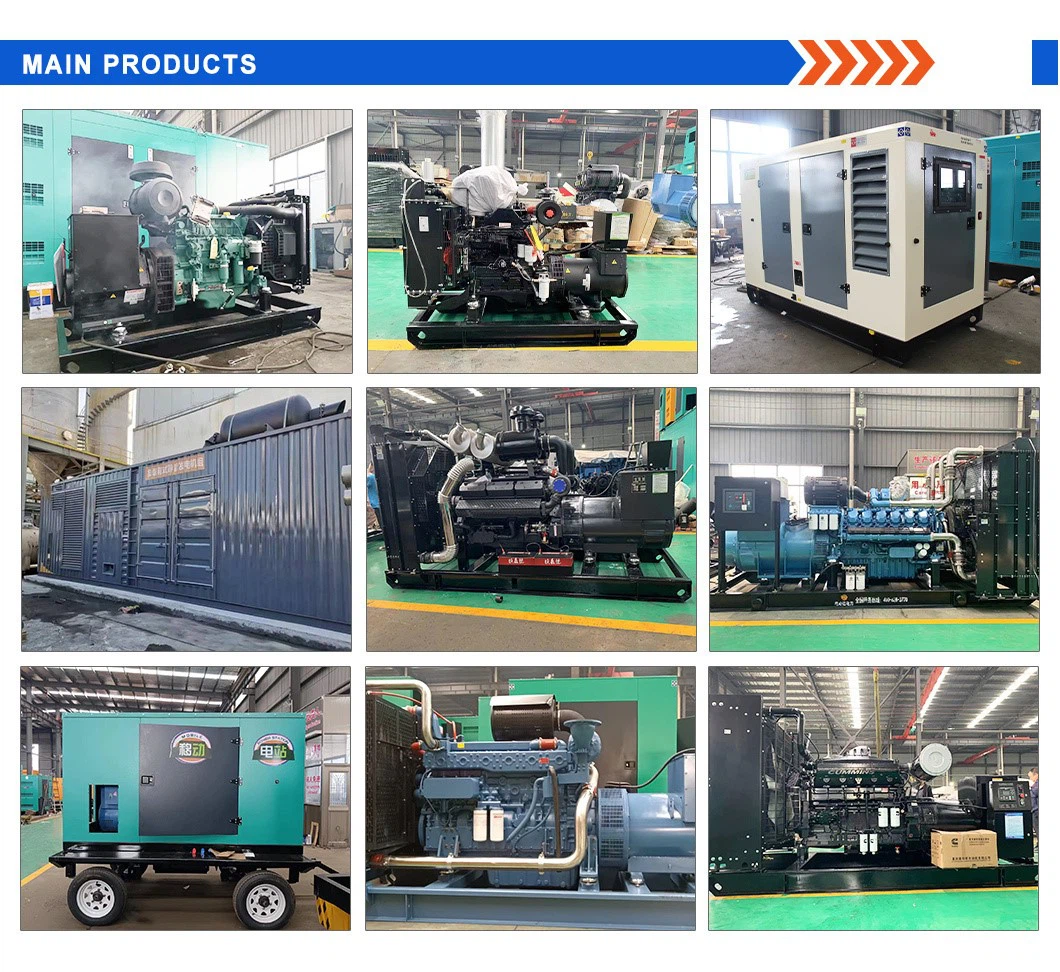

Main products

Core Specifications

Parameters	Description
Power Range	10 kW - 2000 kW (customizable per customer requirements)
Rated Voltage	220V/380V/400V/480V (wide voltage range, customizable)
Rated Frequency	50Hz/60Hz (dual-frequency option, globally applicable)
Engine	Features internationally renowned industrial-grade diesel engines for robust power and stable performance
Generator	High-efficiency brushless synchronous alternator with outstanding voltage stability and load surge capability
Control System	Intelligent microprocessor control module with automatic start/stop, fault protection, and data monitoring functions
Starting Method	Electric start, compatible with automatic transfer switch (ATS) integration
Cooling System	Closed-loop water cooling system ensures stable engine operation in all environments
Structural Features	Open design without protective covers facilitates heat dissipation and maintenance

Technical Advantages

Open Structure Design

Open-frame configuration improves ventilation efficiency and simplifies daily inspection and servicing.

High Cooling Efficiency

Large airflow radiator system supports stable operation under continuous industrial load conditions.

Convenient Maintenance Access

Exposed engine and alternator layout allows faster replacement of filters, belts, and electrical components.

Industrial Diesel Engine Platform

Compatible with Cummins, Perkins, Volvo, MTU, and Weichai engines for reliable continuous or standby operation.

Brushless AVR Alternator

Voltage regulation maintained within ±1% for stable industrial equipment operation.

Application scenarios

Optional Configurations

ATS System

63A–3200A optional
Automatic utility-generator transfer
Open / closed transition optional

External Fuel Tank

500L–10000L optional
Automatic fuel transfer pump optional

Remote Monitoring

GSM / Ethernet communication optional
Remote alarm and operating data monitoring

Synchronization System

Parallel operation for 2–32 units
Automatic load sharing optional

Container Integration

20ft / 40ft container optional
Ventilation and cable outlet customization available

Certificates

About us

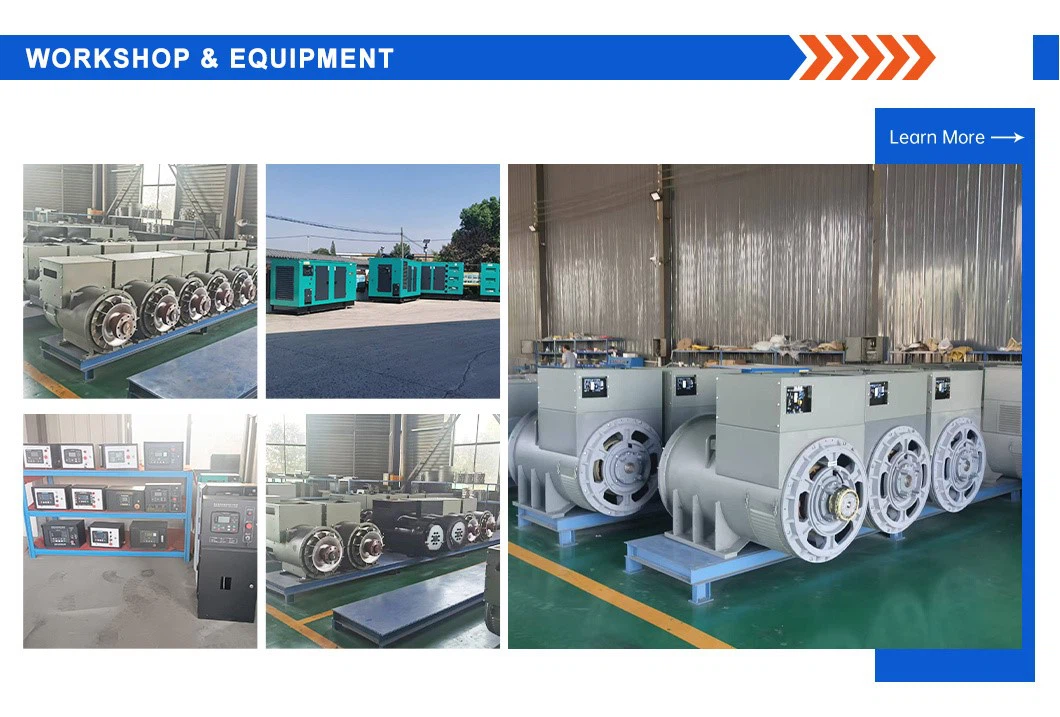

Workshop equipment

Quality Control

Structural Inspection

Base frame welding and mounting system strength are inspected before assembly.

Full Load Operational Testing

Each generator undergoes load testing under multiple operating conditions before shipment.

Electrical Performance Verification

Voltage stability, frequency accuracy, and protection systems are tested before delivery.

Cooling System Inspection

Radiator airflow and coolant circulation are checked for continuous-duty operation.

Fuel & Wiring Inspection

Fuel system sealing and electrical harness integrity are verified before shipment.

Our customers

FAQ

1. What is the difference between open type and silent generator?

Open type generators do not include a soundproof enclosure, providing easier maintenance access and improved ventilation but higher operating noise.

2. Is open type suitable for outdoor installation?

It is generally recommended for indoor generator rooms or protected container systems unless additional weather protection is added.

3. Does open type provide better cooling performance?

Yes, the open structure allows more direct airflow around the engine and radiator system.

4. Is open type more cost-effective than silent type?

Yes, eliminating the enclosure reduces manufacturing and transportation costs.

5. Can open type generators be integrated into container systems?

Yes, they are widely used as internal power units for customized containerized solutions.

6. What applications commonly use open type generators?

Factories, mining sites, equipment rooms, and industrial facilities commonly use open type configurations.

Packaging shipping
