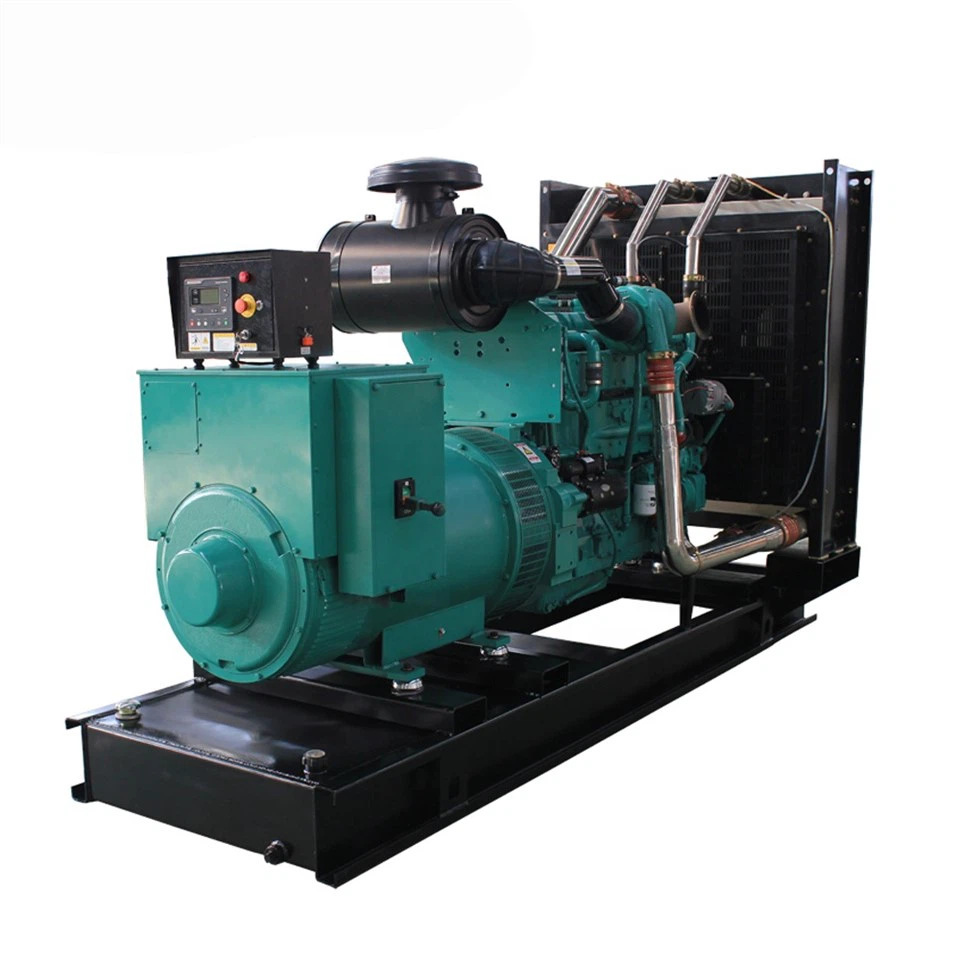

120KW Cummins Diesel Generator

The 120kW Cummins diesel generator set from Dianbida Power is a reliable and efficient power solution designed for a wide range of applications. Equipped with a water-cooled Cummins engine, this 150kVA generator delivers stable performance, strong power output, and long service life.
Engineered for durability and ease of maintenance, it is widely used in construction sites, industrial facilities, commercial buildings, and backup power systems.

Send Inquiry

Description

Technical Parameters

Products Features

60HZ 220V 120kw can be adapt to clients' request.
BFT: Steel base fuel tank with anti-vibration mounting
Based 8-10 hours build-in fuel tank

Packing &Delivery

Packing information
Dimension (LxWxH)	25009001400mm
Net/Gross Weight	1600kg
Delivery Detail	Within 30 working days started from the deposit date

Technical Specification

120KW Cummins Diesel Generator
Genset	Model	DBD-C120
	Frequency	50HZ
	Power	120kw/150kva
	Output Voltage	380/220 V(voltage can be customized)
	Optional Type	Open(here)/soundproof/trailer
	Size of Open type	25009001400mm
	Weight of Open type	1600kg
Engine	Model	6BTAA5.9-G2
	Cylinders	6
	Output Power	106/116KW
	Bore×Stroke	102×120 mm
	Fuel Consumption Rate (at 100% load)	≤216 g/Kw·h
	Displacement	5.9 Liter
	Lubrication Oil Capacity	16.4 Liter
	Intake way	Turbocharged
	Speed governor	Electric
Alternator	Model	YKW-120
	Optional brands	Stamford/Leroy Somer/Mecc Alte/Marathon
	Power	120kw
	Insulation class	H
	Protection class	IP23
	Exciter type	Brushless self-excited(AVR)

Controller: Optional brands: Deepsea/ComAp/Smartgen etc.
